AMISCO Type Solenoid Valve Coil EVI 7/10 DC12V DC24V AC24V AC110V AC220V

AMISCO Type Solenoid Valve Coil EVI 7/10 DC12V DC24V AC24V AC110V AC220V

This is a EVI 7/10 solenoid valve coil, coil inner hole diameter is 10mm, coil height is 30mm, coil width is 22.5mm, coil insulation class is H, coil connection type is flying leads, supply 220VAC, 110VAC, 24VAC, 24VDC, 12VDC voltages, supply 6.5W power, other voltages and power can be customized.

Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.

Technical data of solenoid valve coil:

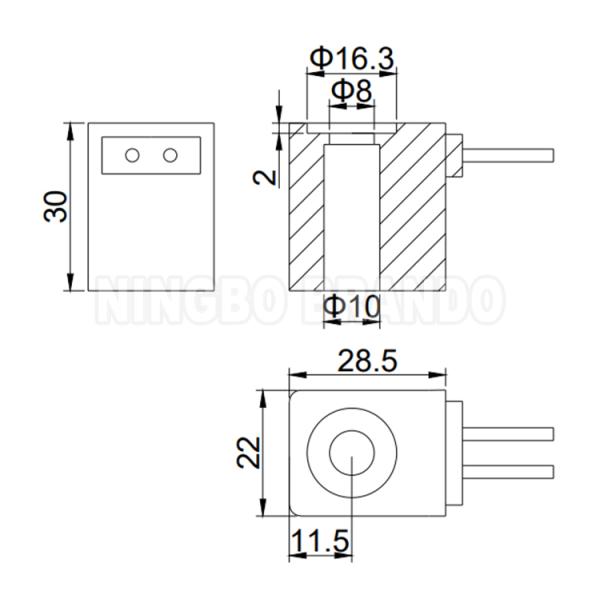

Main dimension of BB10030028 solenoid valve coil:

More Solenoid Valve Coil for you to choose:

*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!

AMISCO Solenoid Valve Coil

EVI 7/10 Solenoid Coil

Solenoid Valve Coils

AMISCO Type Solenoid Valve Coil EVI 7/10 DC12V DC24V AC24V AC110V AC220V Images
