Joil Type 1'' Electromagnetic Pulse Valve Diaphragm Repari Kit J25 Air Wokring Medium for Industrial Dust Collector
The electromagnetic pulse valve diaphragm is the key to the normal operation of the electromagnetic pulse valve. The electromagnetic pulse valve is the “opening and closing” of the blowing air path of the pulse bag type dust collector cleaning system. The electromagnetic pulse valve diaphragm is controlled by the pulse controller. The diaphragm vibrates into the street and the pulse “pulse amount” is sprayed and cleaned. The area of the electromagnetic pulse valve diaphragm is controlled to be larger than the area of the front control, and the air pressure is large, so that the diaphragm is at a critical position. The pulse controller inputs an electrical signal to cause the electromagnetic head to pick up the transport and open the unloading hole.
| Model | Joil Type Pulse Valve Diaphragm |
| Hole numbers for mounting | 6 |
| Working ambient temperature | -20℃ to 80 ℃ |
| Working pressure | 0.2Mpa to 0.6Mpa |
| Working medium | Water/Clean air |
| Life expectancy | over 1 million times or 2 yeas |
| Transport | By air,by sea,by express,etc |

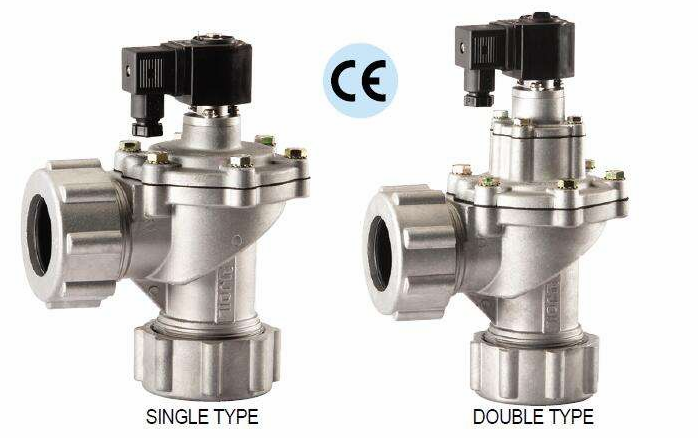

Single diaphragm and double diaphragm installation in valve for reference
Finally,application in Bag Dust Collector System
Operation of the electromagnetic pulse valve diaphragm
The pulse valve diaphragm is an air switch of the electromagnetic pulse valve, and the pressure gas controlled by the electromagnetic pulse valve diaphragm is quickly discharged. The pressure gas controlled by the diaphragm lifts the diaphragm, opens the electromagnetic pulse valve channel and blows it on, and the electrical signal disappears. The spring of the electromagnetic pilot head immediately resets the opening and unloading hole. The electromagnetic pulse valve diaphragm controls the gas pressure and the spring force to close the diaphragm. The electromagnetic pulse valve stops the resistance hole on the diaphragm. When the pilot head moves up and the gas pressure is unloaded, the electromagnetic pulse valve membrane The sheet acts as a resistance air flow. When the unloading is closed, the pressure gas is quickly filled into the rear chamber, so that the electromagnetic pulse valve diaphragm closes the passage and stops the injection.
We offers a full range of diaphragm valves and diaphragm kits suited to the high flow and fast response demands of reverse pulse jet dust collector applications. The reverse pulse jet diaphragm valves are built to an exceptional quality standard and are supported by dedicated and experienced applications engineers. All Pulse Jet Valves are built to the highest quality standards, making them a best-in-class product for durability and longevity. All our valves are 100% tested for function and leak prior to shipment and are the first choice solution with the largest system builders globally.
If you want to know more,pls feel free to contact us
